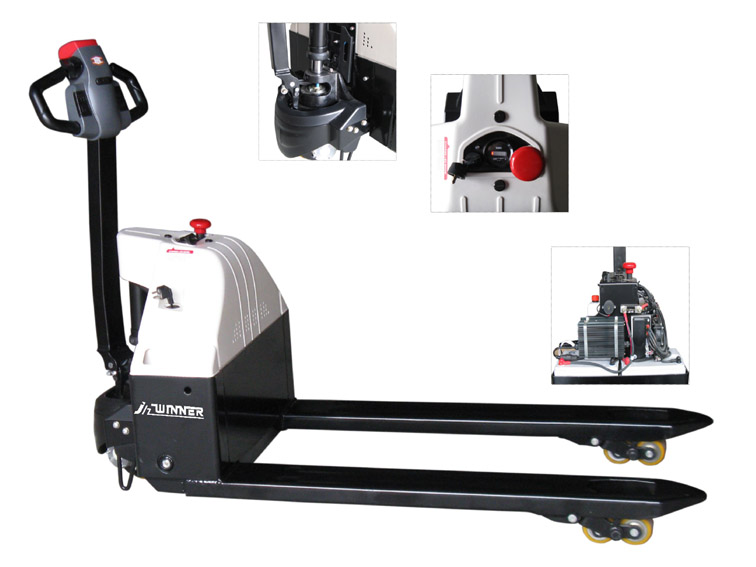

Model designation | WEPT20-20ET | |
Drive unit | Battery | |
Operator type | Walkie | |
Load capacity | Q (kg) | 2000 |
Service weight (Incl. battery) | kg | 205 |
Tyre type | PU | |
Tyre size, operator side | (mm) | Ф210x70 |
Tyre size, load side | (mm) | 2xΦ80x60 |
Lift height | h3 (mm) | 115 |
Overall length | l1 (mm) | 1620 |
Overall width | b1/ b2 (mm) | 724 |
Fork dimensions | s/e/l (mm) | 55/150/1150 |
Fork spread, min/ max | b5 (mm) | 560/685 |
Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1739 |
Aisle width, 800×1200 pallet lengthways | Ast (mm) | 1939 |
Outer turning radius | Wa (mm) | 1485 |
Travel speed, laden/ unladen | km/ h | 3.5/ 4 |
Lifting speed, laden/ unladen | m/s | 0.051/ 0.060 |
Maximum gradeability, laden/ unladen S2 5 min. | % | 2/6 |
Service brake | Electromagnetic | |
Drive motor rating S2 60 min. | kW | 0.65 |
Lift motor rating at S3 15% | kW | 0.84 |
Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 65 |
Battery weight | kg | 45 |
Battery compartment dimensions l/w/h | mm | 260/169/ 215 |
Battery type | Maintenance free battery | |
Type of drive control | DC 直流 | |
Manufacturer | CURTIS 柯蒂斯 |
