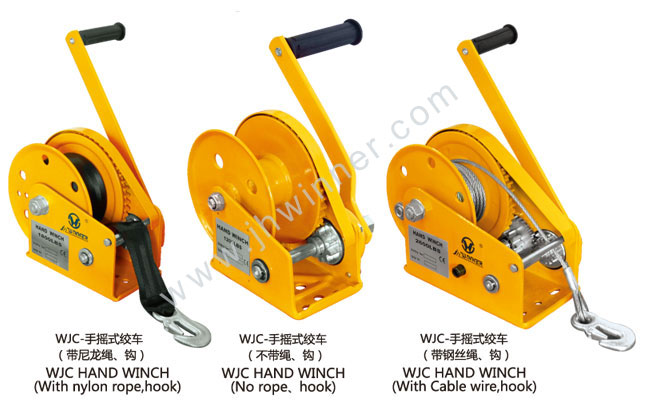

WJC HAND WINCH

詳細說明

Stork No		500501200	500501800	500502600
Modle		1200LBS	1800LBS	2600LBS
Safe working load(lbs)		1200	1800	2600
Test load		8	12.13	17.64
Gear ratio		4.2:1	5:1	10:1
Dimensions(mm)	A	156	203	216
	B	184	256	293
	C	88	107	127
	D	217	319	319
	E	27	27	27
	F	272	283	305
	G	51	60	63
	H	109	109	109
Net weight(kg)		3.7	7.7	10.1
Volume（mm）		160×160×220	350×200×230	350×240×240
Rope length(m)		Ф4mm wire rope 35m,nylon rope8m	Ф5mm wire rope 50m,nylon rope10m	Ф5mm wire rope 50m,nylon rope10m

* The WJC type hand winch is small,light ,easy to use fitted with
the device of friction braking ,is a kind of light and handy
flexible drawing tools,Suitable for automobile,ship mooring,
trees, etc.
